CY-H01

17 inch standard version

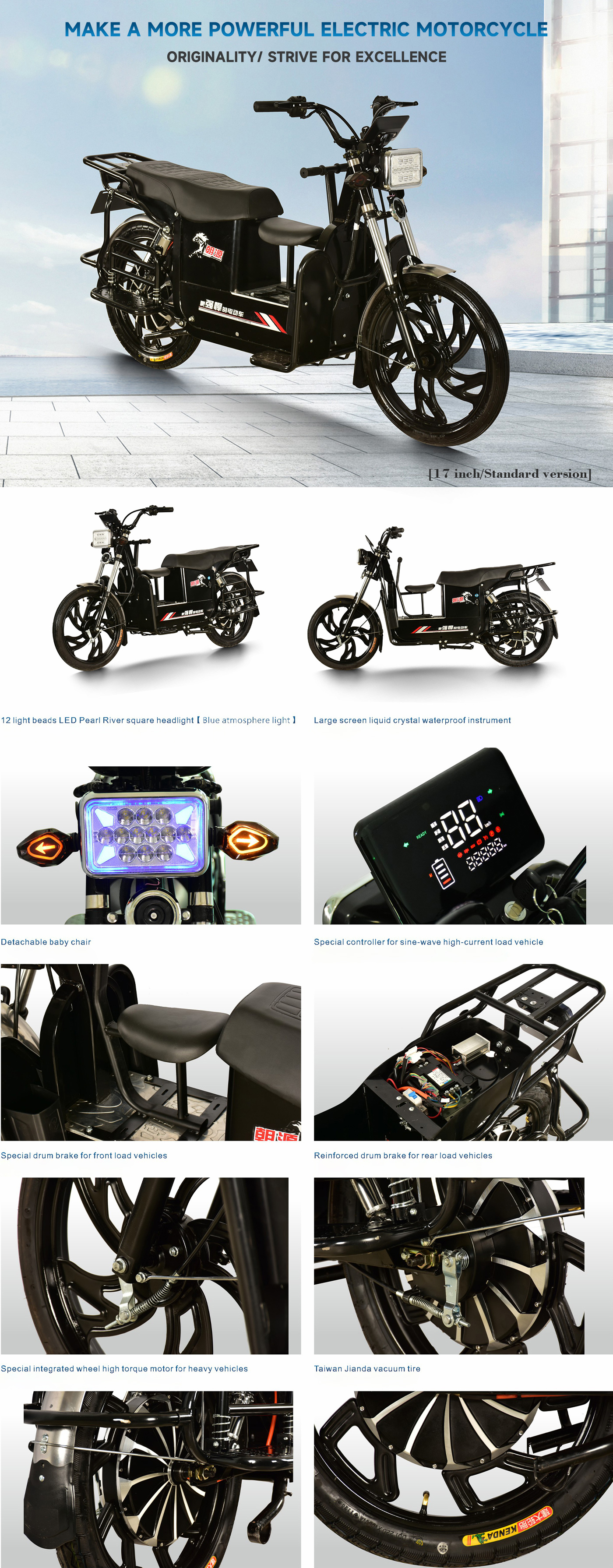

This commuter electric motorcycle uses 60/72V universal battery design, users can choose the appropriate battery capacity according to their needs, whether it is a short trip or a long trip can be easily cope with, no need to frequently change the battery or worry about low power, strong endurance, suitable for commuting, long distance riding or travel ,made of high quality materials and parts, through strict quality inspection and safety testing. it is equipped with brake system, anti skid tires and other safety facilities to ensure more safe and reliable driving .

Details


Parameter

CY-H01  Configuration table :

Dimensions (length*width*height) 1920*730*1080mm Rated passenger capacity 2people
Front and rear wheelbases 1350mm Deadweight capacity ≤200Kg
Empty car mass(excluding battery) 55Kg Gradient ≤20°
Motor type 17 inch wheel hub(17*1.85)drum brake motor Front light fixture Eight lamp beads LED Pearl River square lamp
power 1KW Tail lamp Integrated taillights
Rated voltage 48V/60V/72V Front aluminum wheel 1.85*17 aluminum wheel
controller 12 tube DC leadless sine wave controller Front and rear vacuum tires Front 2.25*17 back 2.25-17
Maximum torque 100N.m Front shock absorber Load King hydraulic shock L=700mm
Undervoltage protection value 40V/50V/60V Rear twin barrel hydraulic shock absorber 320
Overcurrent protection value 32A Minimum ground clearance 200mm
Maximum design speed 48V/45Km/h Front and rear brake Front/rear drum brake
60V/50Km/h Front and rear brake maneuvers Front and rear handle handbrake
72V/55Km/h Battery type Maintenance-free lead-acid battery/lithium
  Battery capacity Lead-acid battery 48V160V172V ·22Ah Lithium battery 72V60Ah
