CY-HP01

14 inch high size

Super load capacity:heavy electric motorcycle has super load capacity, whether it is goods or people, can be easily carried, especially suitable for take-out brother and users who need to frequently transport goods, to solve the problem of insufficient load of electric vehicles .

universal battery design:this electric motorcycle uses 60/72 universal battery design, users can choose the appropriate battery capacity according to their needs, whether it is a short trip or a long journey can easily deal with, there is no need to frequently change the battery or worry about insufficient power .

Safe and reliable:made of high quality materials and parts, through strict quality inspection and safety testing. this equipped with brake system, anti-skid tires and other safety facilities to ensure more safe and reliable driving .very tough, dynamic and adaptable to all kinds of rough terrain !

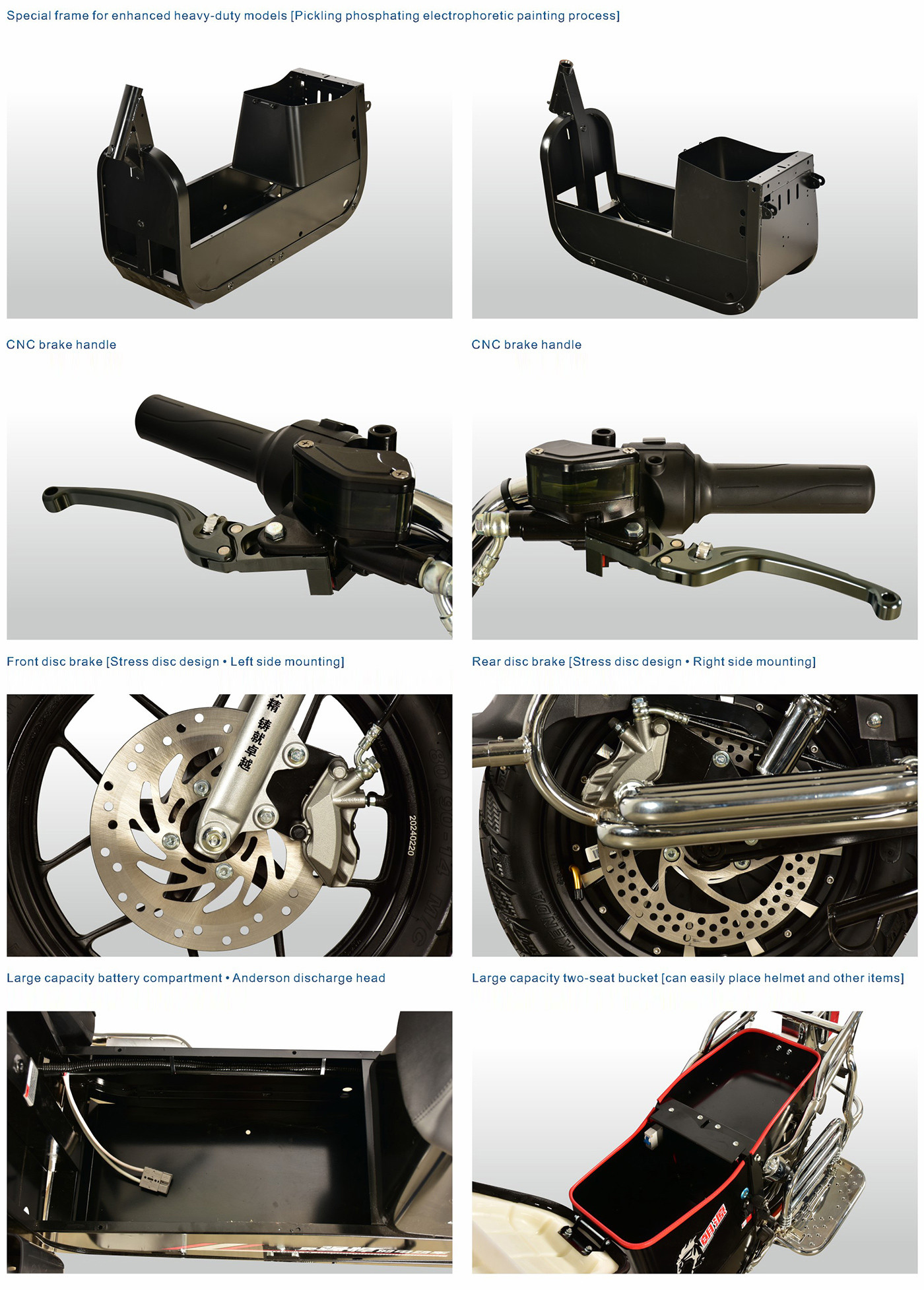

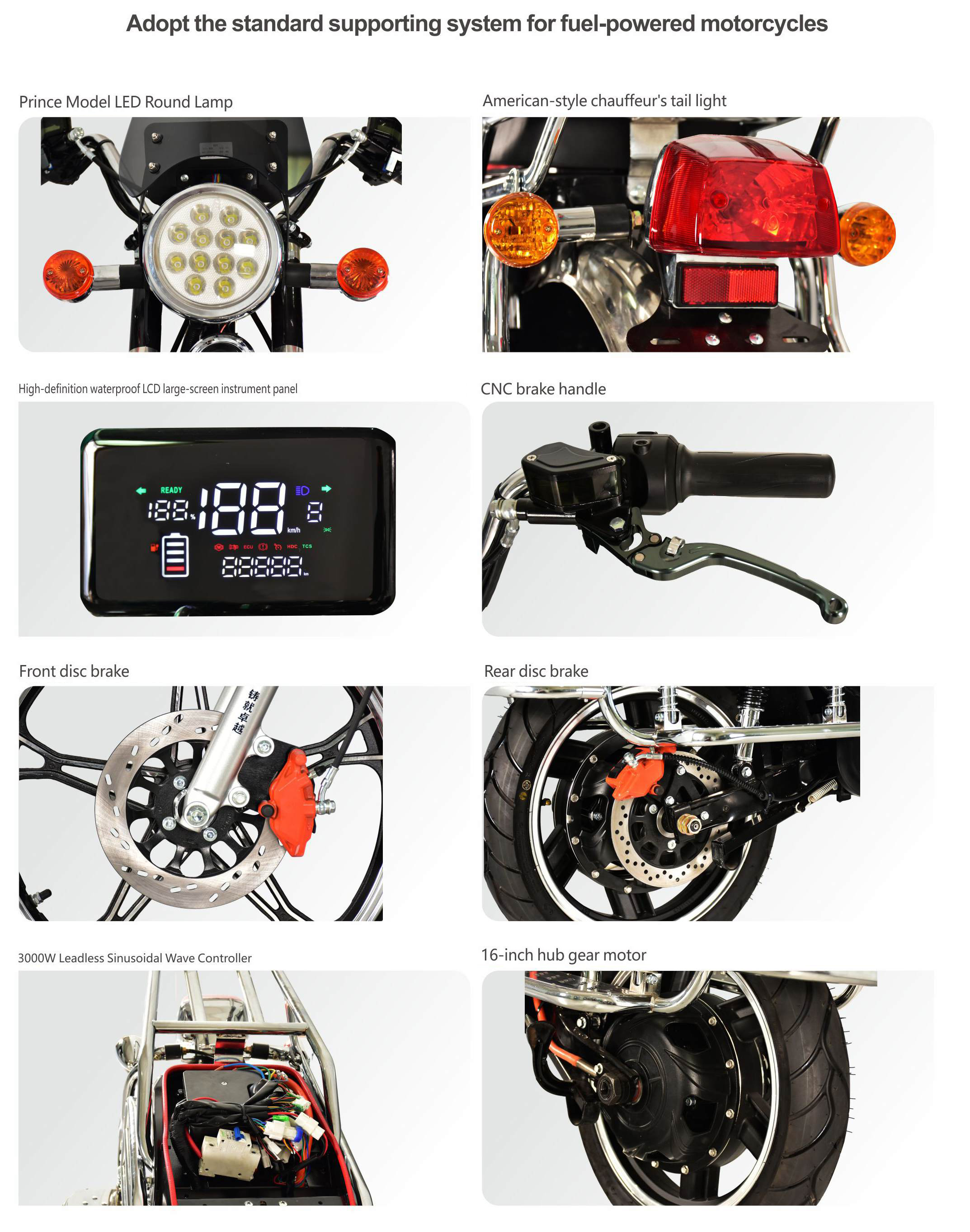

Details

Parameter

CY-HP01 Configuration table :

Dimensions (length*width*height)
2020*840*1160mm Economic speed
40km/h
Front and rear wheelbases
1440mm Rated passenger capacity
2(people)
Minimum ground clearance
200mm Deadweight capacity
≤250Kg
Empty car mass(excluding battery)
77Kg Gradient
≤25°
Motor type
12 inch wheel motor
Front light fixture
GN  LED  round  light
power
2KW Tail lamp
GN LED horse taillight
Rated voltage
72V Front steel ring
1.85*14 aluminum wheel
controller
Dc leadless sine wave controller
Front  and  rear  vacuum  tires
80/90-14  90/90-12
Maximum torque
150N.m Front and rear twin cylinder hydraulic shock absorption
before720 after320
Maximum   efficiency >90% Front and rear brake
Front/rear   disc   brake
Undervoltage protection value 58±2V Front and rear brake maneuvers Front  and  rear  handle  handbrake
Overcurrent protection value
55A Battery  type
Maintenance-free lead-acid battery/lithium battery
Maximum design speed
70Km/h Battery capacity
Lead-acid battery 72V ·35Ah~45Ah Lithium battery 72V100Ah
