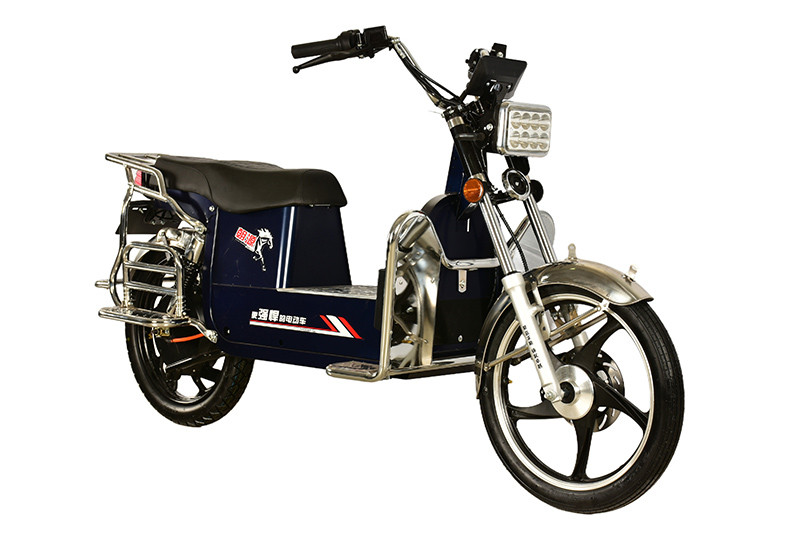

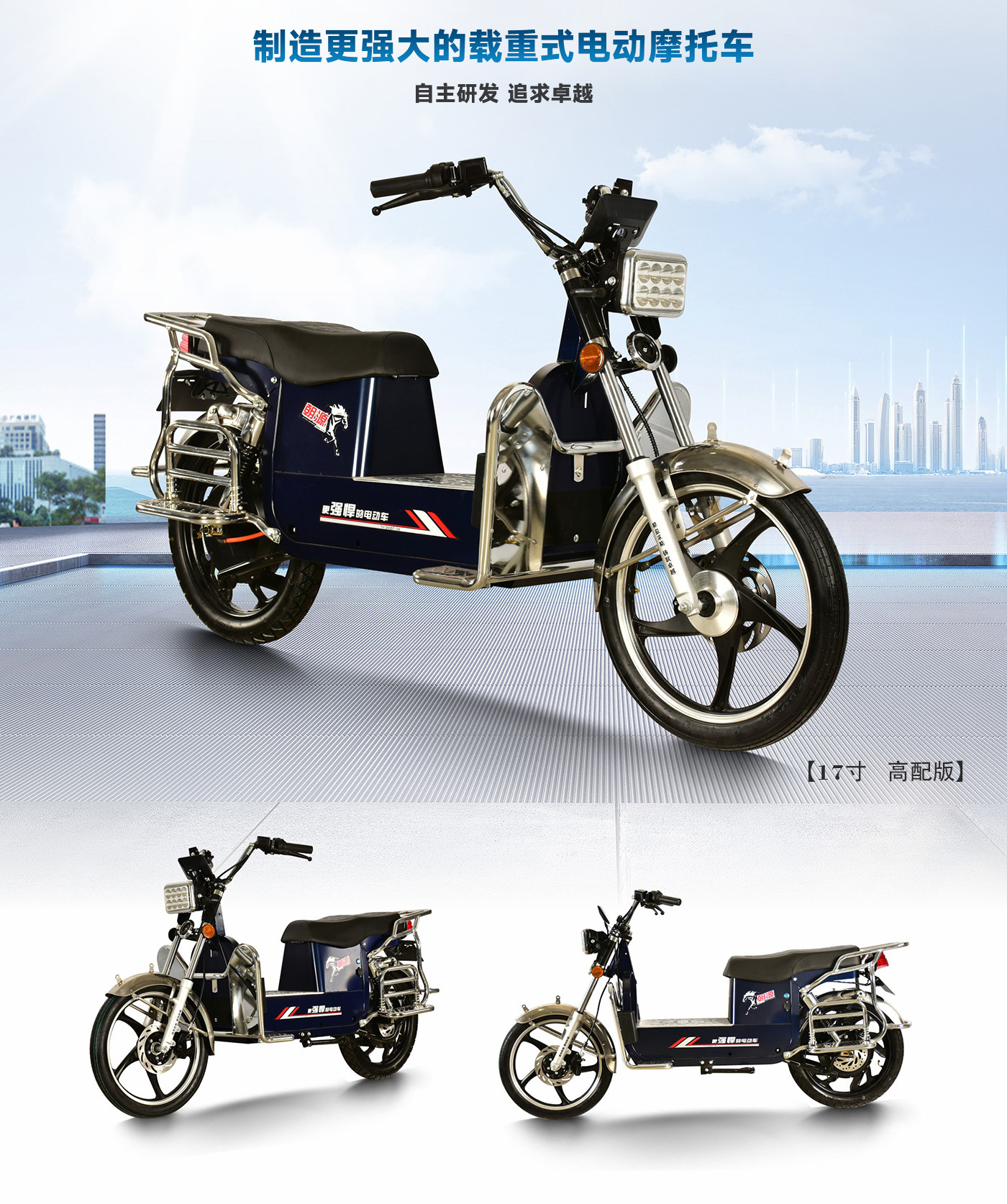

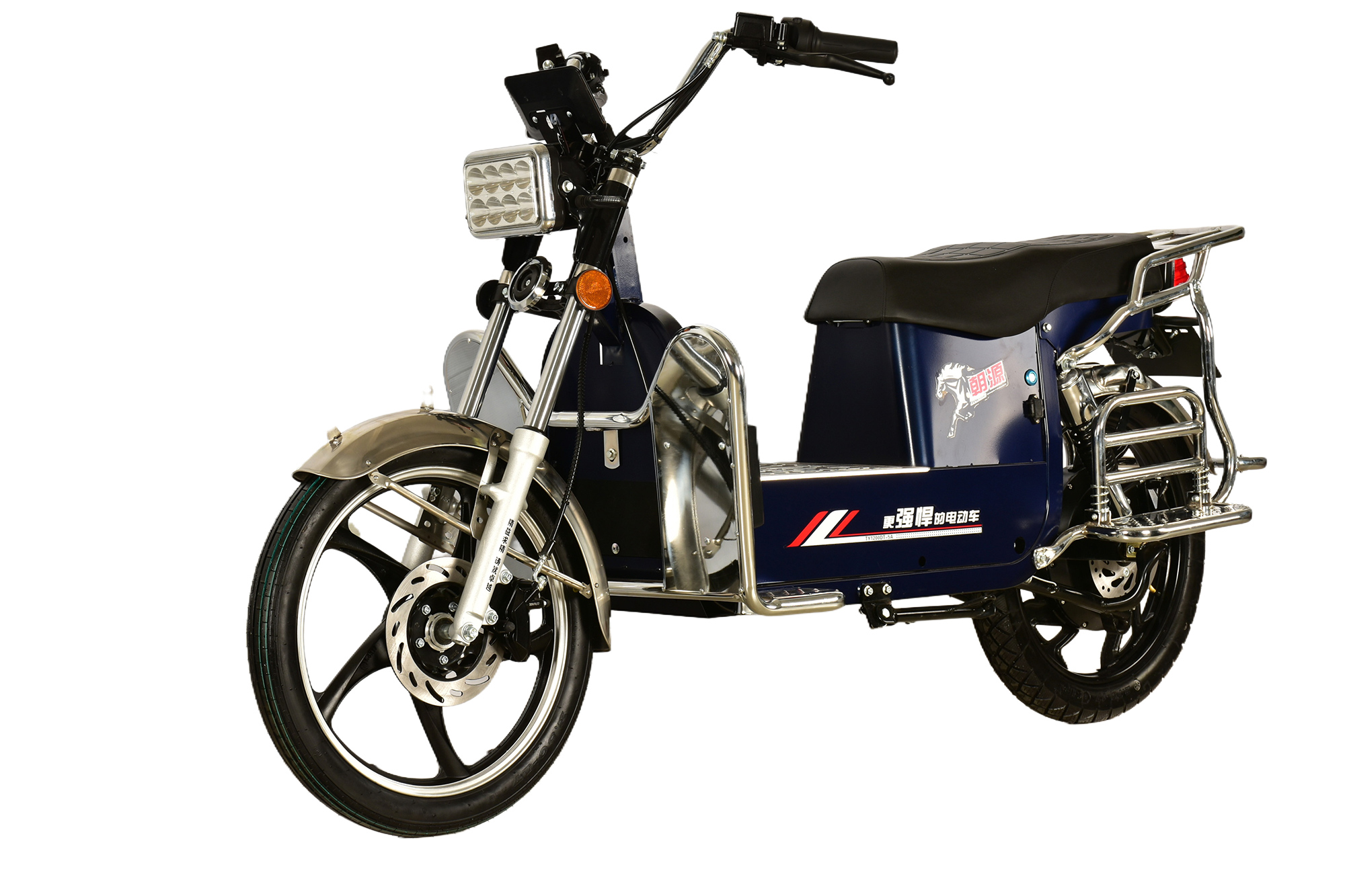

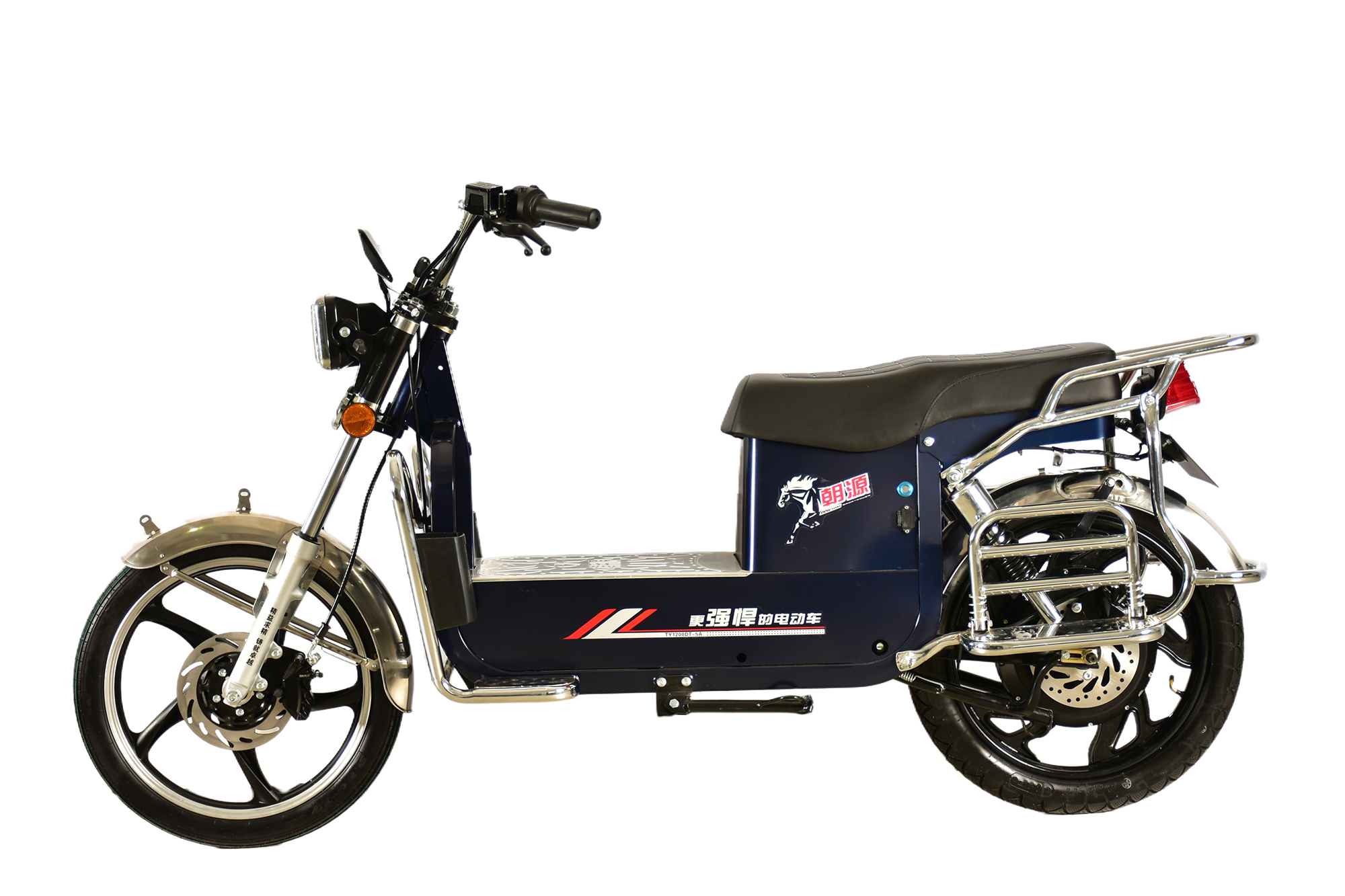

CY-H01 Plus

17寸高配版

Excellent endurance:the load-carrying electric motorcycle has excellent endurance, which can allow users to ride longer distances after a charge, whether it is urban commuting or rural travel, it can let users enjoy the fun of riding .Super load capacity:heavy electric motorcycle has super load capacity, whether it is goods or people, can be easily carried, especially suitable for take out brother and users who need to frequently transport goods, to solve the problem of insufficient load of electric vehicles,very tough, dynamic and adaptable to all kinds of rough terrain !

详情

参数

CY-H01 Plus  Configuration table :

Dimensions(length*width*height)
1670*780*1060mm Rated passenger capacity
2(people)
Front and rear wheelbases
1250mm Deadweight   capacity ≤250Kg
Empty car mass(excluding battery)
53Kg Gradient ≤25。
Motor type
17 inch wheel hub(17*1.85)disc brake motor

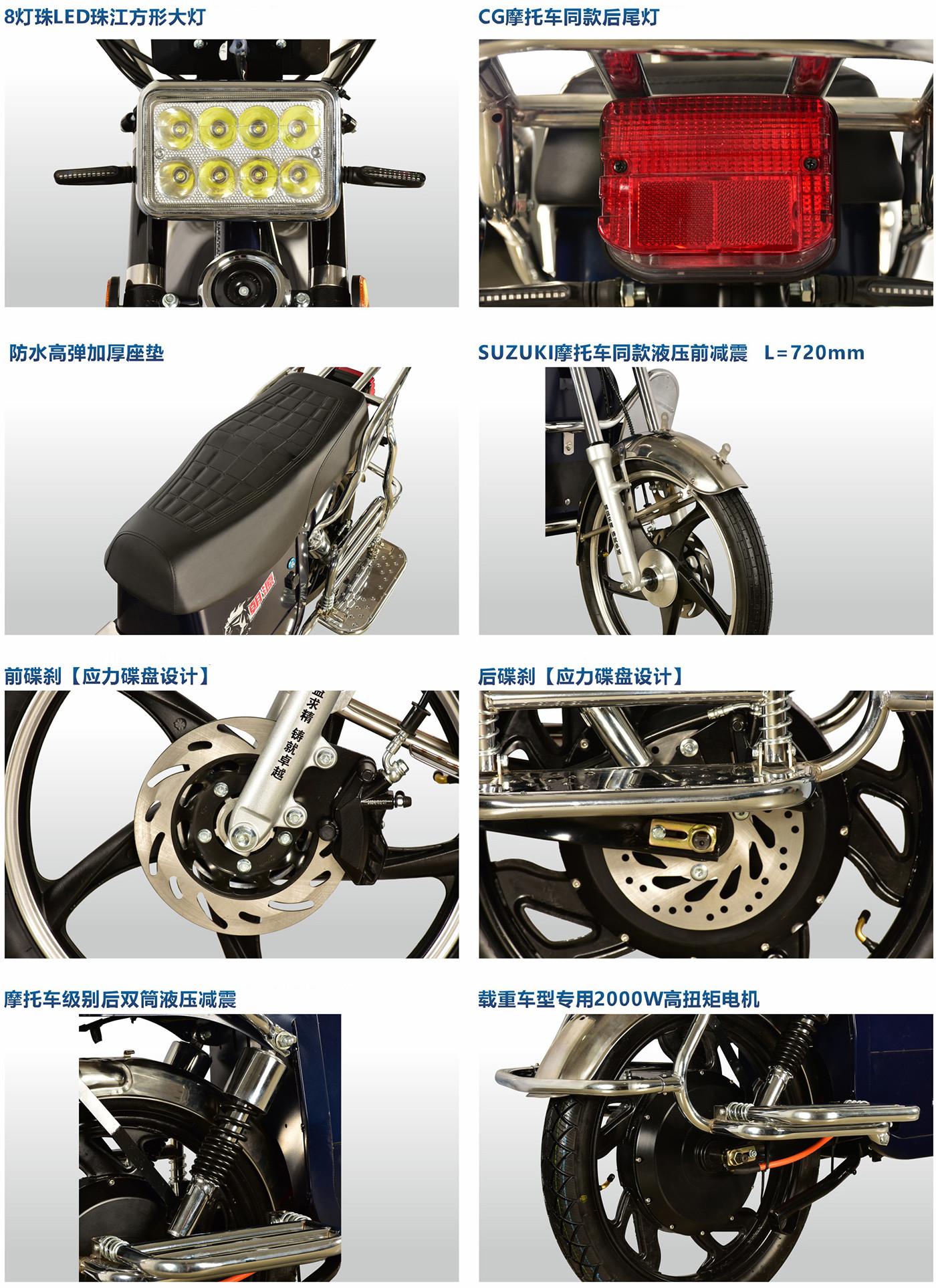

Front light fixture 8 light beads LED Pearl River square headlights
power
2KW Tail lamp C G tail light
Rated  voltage
48V/60V/72V Front  aluminum   wheel 2.50*17 aluminum wheel
controller
Dc leadless sine wave controller
Front and rear vacuum tires
Front 2.50*17 back 2.75-17
Maximum   torque
155N.m Front    shock    absorber Suzuki King hydraulic shock L=720mm
Undervoltage protection value
40V/50V/60V Rear twin barrel hydraulic shock absorber
320
Overcurrent protection value
55A Minimum ground clearance 200mm
Maximum design speed
48V/40Km/h Front and rear brake
Front/rear  disc  brake
60V/48Km/h Front and rear brake maneuvers Front  and  rear  handle  handbrake
72V/55Km/h Battery  type Maintenance-free lead-acid battery/lithium
Battery capacity Lead-acid battey48V/60V72V-35Ah~45Ah Lithium battery72V100Ah
